Sandvik Coromant

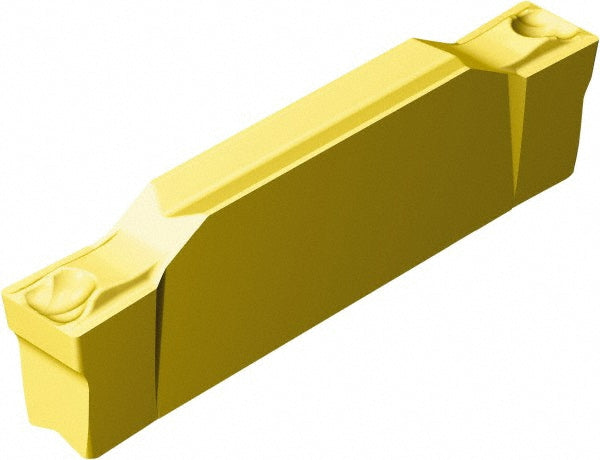

N123E2-0200-0004-GF 1005 Solid Carbide Insert, Grade 1005, TiAlN/TiN - Sandvik Coromant 5736493
MFR# 5736493ISO/ANSI# N123E2-0200-0004-GF 1005Cat# N123E2-0200-0004-GF 1005Series CoroCut 1-2
$41.17List $52.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1005
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5736493 is a N123E2-0200-0004-GF 1005 solid carbide indexable insert, grade 1005, TiAlN/TiN coated.
Specifications
Chip breakerGF
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0157
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE
Insert styleN123
Insert thickness0.1693
Iso codeN123E2-0200-0004-GF 1005
Manufacturers catalog numberN123E2-0200-0004-GF 1005
Manufacturer grade1005
Maximum corner radius0.0177
Maximum depth of cut0.7559
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0138
Multi use toolYes
Overall length0.7894
Overall width0.0787
RakeNeutral
Rake angle7.00
