Sandvik Coromant
N123H2-0500-RO 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5736526
MFR# 5736526ISO/ANSI# N123H2-0500-RO 1125Cat# N123H2-0500-RO 1125Series CoroCut 1-2
$52.08List $66.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description

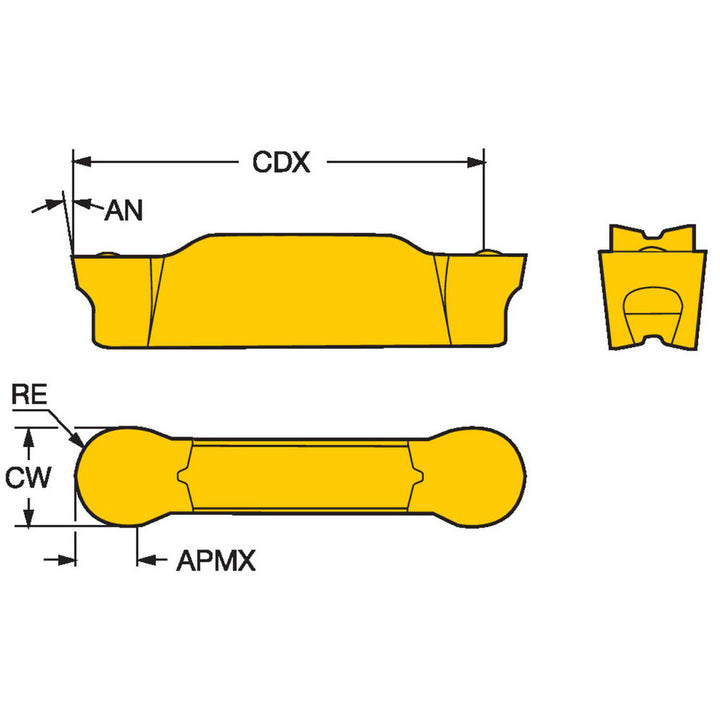

The Sandvik Coromant 5736526 is a N123H2-0500-RO 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.0984
Cutting height0.1713
Cutting width0.1969
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123H2-0500-RO 1125
Manufacturers catalog numberN123H2-0500-RO 1125
Maximum depth of cut0.8980
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0984
Multi use toolYes
Overall length0.9860
Overall width0.1970
RakePositive
