Sandvik Coromant

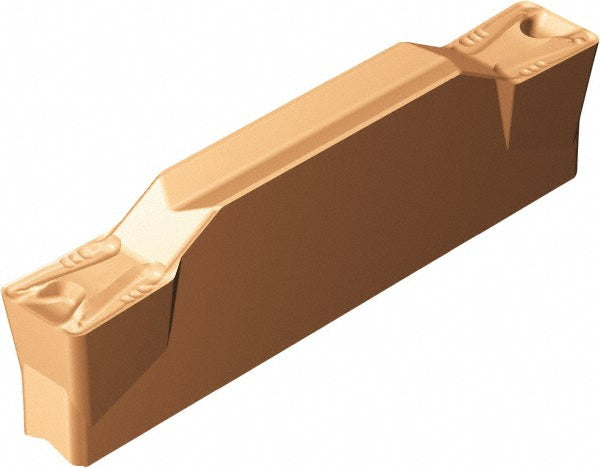

N123H204000004TM1145 Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5736547
MFR# 5736547ISO/ANSI# N123H204000004TM1145Series CoroCut 1-2
$47.25List $60.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736547 is a N123H204000004TM1145 solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
Chip breakerTF
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.40
Cutting width (mm)4.00
Insert handNeutral
Insert materialSolid Carbide
Insert size400
Insert styleN123H2
Insert thickness4.35
Iso codeN123H204000004TM1145
Manufacturers catalog number5736547
Manufacturer grade1145
Maximum depth of cut (mm)2.20
Maximum depth of cut range (mm)2.00 to 3.00
Rake angle7.00
