Sandvik Coromant

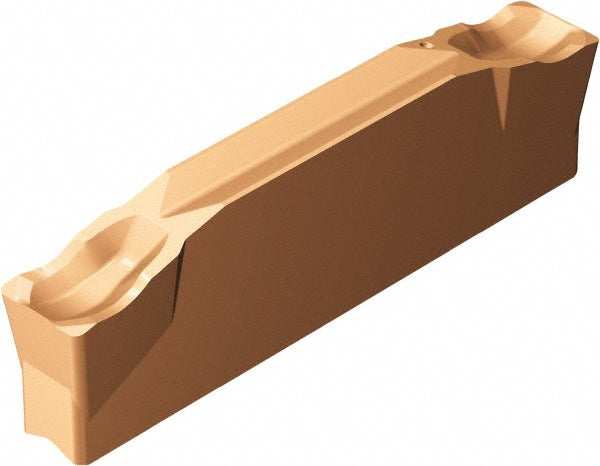

Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736711
MFR# 5736711Cat# N123K2-0600-0004-CR 1125Series CoroCut 1-2
$49.77List $63.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736711 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerCR
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.2362
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeK
Insert size codeK
Insert styleN123x2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123K2-0600-0004-CR 1125
Manufacturer grade1125
Maximum depth of cut0.9252
Overall length0.9681
Overall width0.2362
Relief angle7.00
