Sandvik Coromant

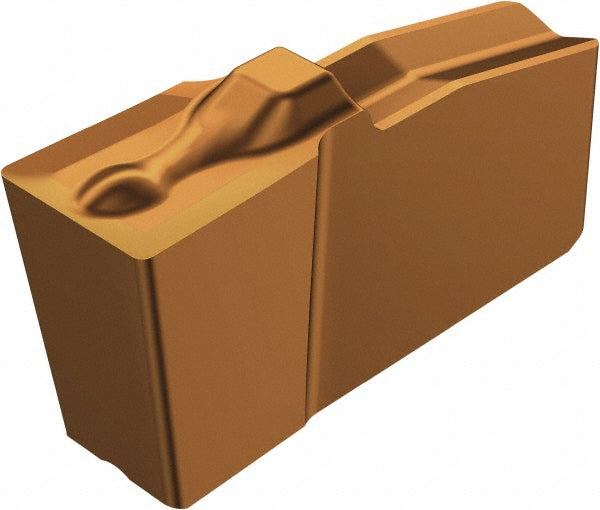

N151.2-A094-25-4G 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736724
MFR# 5736724ISO/ANSI# N151.2-A094-25-4G 1125Cat# N151.2-A094-25-4G 1125Series T-Max Q-Cut
$22.18List $28.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736724 is a N151.2-A094-25-4G 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker4G
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height0.2672
Cutting width in3/32
Insert handNeutral
Insert materialSolid Carbide
Insert seat size25
Insert size25
Insert styleN151.2
Insert thickness0.2672
Iso codeN151.2-A094-25-4G 1125
Manufacturers catalog numberN151.2-A094-25-4G 1125
Manufacturer grade1125
Maximum corner radius0.0095
Minimum corner radius0.0055
Multi use toolYes
Overall length0.2248
Overall width0.0940
RakeNeutral
Rake angle7.00
