Sandvik Coromant

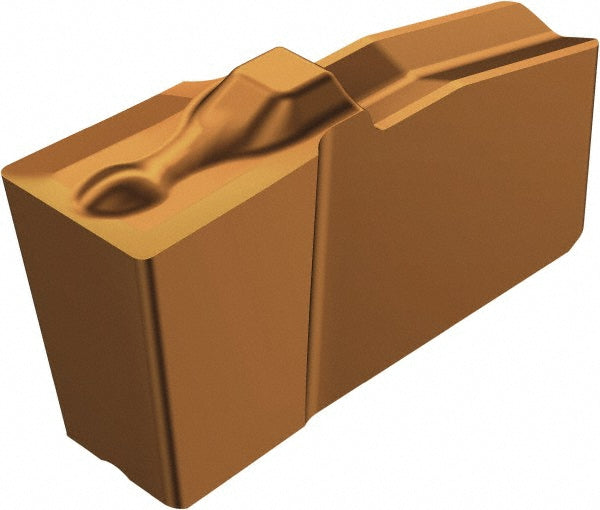

N151.2-A156-30-4G 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736788
MFR# 5736788ISO/ANSI# N151.2-A156-30-4G 1125Cat# N151.2-A156-30-4G 1125Series T-Max Q-Cut
$23.93List $30.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736788 is a N151.2-A156-30-4G 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker4G
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting height0.2672
Cutting width in5/32
Insert handNeutral
Insert materialSolid Carbide
Insert seat size30
Insert size30
Insert styleN151.2
Insert thickness0.2672
Iso codeN151.2-A156-30-4G 1125
Manufacturers catalog numberN151.2-A156-30-4G 1125
Manufacturer grade1125
Maximum corner radius0.0095
Minimum corner radius0.0055
Multi use toolYes
Overall length0.2197
Overall width0.1560
RakeNeutral
Rake angle7.00
