Sandvik Coromant

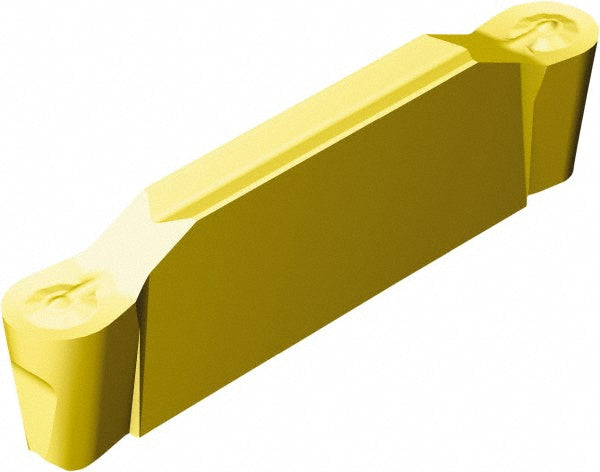

N123J2-0600-RO S05F Solid Carbide Insert, TiCN/Al2O3/TiN - Sandvik Coromant 5736815
MFR# 5736815ISO/ANSI# N123J2-0600-RO S05FCat# N123J2-0600-RO S05FSeries CoroCut 1-2
$57.54List $73.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736815 is a N123J2-0600-RO S05F solid carbide indexable insert, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerRO
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.1181
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0600-RO S05F
Manufacturers catalog numberN123J2-0600-RO S05F
Maximum depth of cut0.8740
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.1181
Multi use toolYes
Overall length0.9860
Overall width0.2360
RakePositive
