Sandvik Coromant
N123J2-0600-RO 1105 Solid Carbide Insert, TiAlN - Sandvik Coromant 5736817
MFR# 5736817ISO/ANSI# N123J2-0600-RO 1105Cat# N123J2-0600-RO 1105Series CoroCut 1-2
$59.37List $76.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description

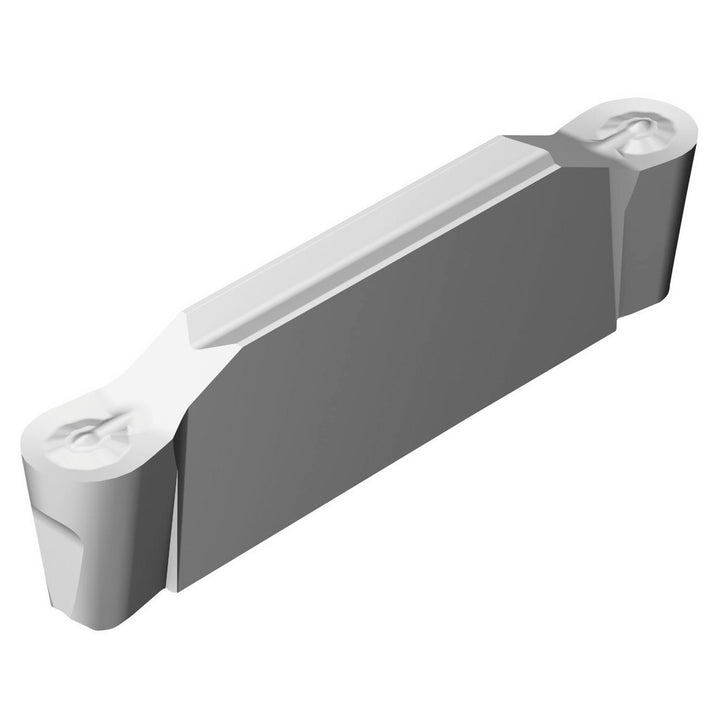

The Sandvik Coromant 5736817 is a N123J2-0600-RO 1105 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0600-RO 1105
Manufacturers catalog numberN123J2-0600-RO 1105
Maximum depth of cut0.8740
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.1181
Multi use toolYes
Overall length0.9860
Overall width0.2360
RakePositive
