Sandvik Coromant
Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5736917
MFR# 5736917Cat# MACL 3 100-R 1025Series CoroCut XS
$20.42List $26.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description

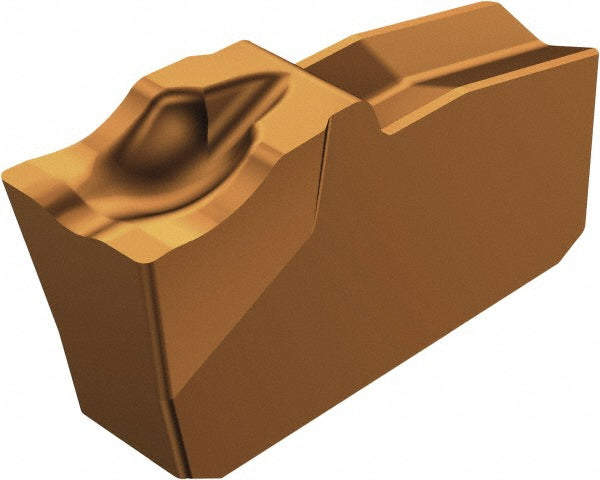

The Sandvik Coromant 5736917 is a solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
ChipbreakerMAC
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0020
Cutting width0.0394
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleMAC
Lead angle0
Lead angle directionLeft Hand
Manufacturers catalog numberMACL 3 100-R 1025
Manufacturer grade1025
Maximum depth of cut0.2480
Overall length0.4732
Overall width0.0394
Relief angle7.00
