Sandvik Coromant

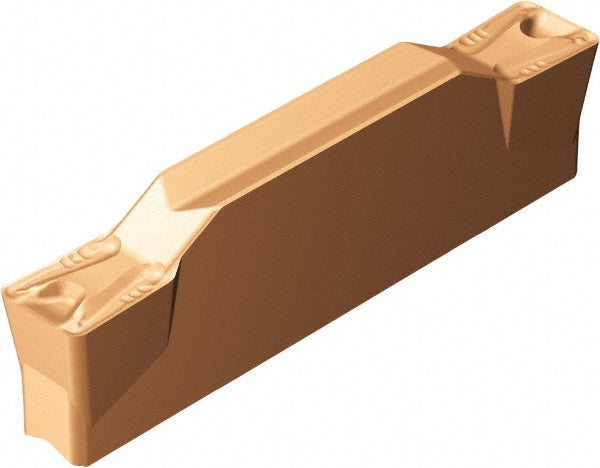

N123L2-0800-0008-TM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736925
MFR# 5736925ISO/ANSI# N123L2-0800-0008-TM 1125Cat# N123L2-0800-0008-TM 1125Series CoroCut 1-2
$62.40List $80.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736925 is a N123L2-0800-0008-TM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerTM
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting height0.2382
Cutting width0.3150
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeL2
Insert styleN123x2
Insert thickness0.2382
Iso codeN123L2-0800-0008-TM 1125
Manufacturers catalog numberN123L2-0800-0008-TM 1125
Manufacturer grade1125
Maximum depth of cut1.1020
Maximum depth of cut range1.0000+
Multi use toolYes
Overall width0.2382
RakePositive
