Sandvik Coromant
Carbide Insert, Grade 3020, TiCN - Sandvik Coromant 5737070
MFR# 5737070Series T-Max Q-Cut
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3020
MaterialCarbide
CoatingTiCN
Description

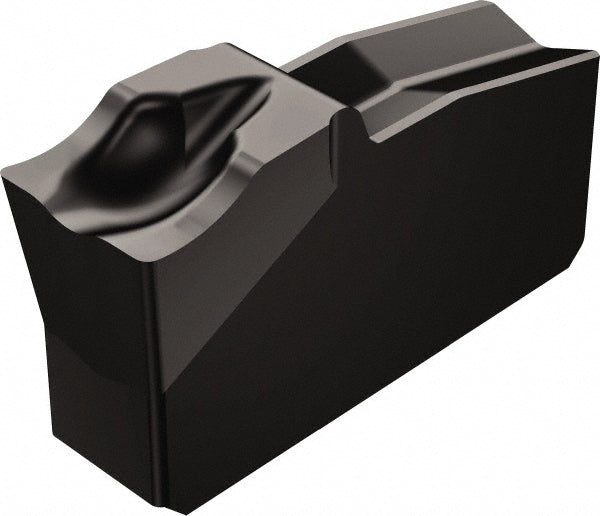

The Sandvik Coromant 5737070 is a carbide indexable insert, grade 3020, TiCN coated.
Specifications
Chipbreaker5E
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size30
Insert size code30
Insert styleN151.2
Lead angle0
Manufacturers catalog number5737070
Manufacturer grade3020
Relief angle7.00
