Sandvik Coromant

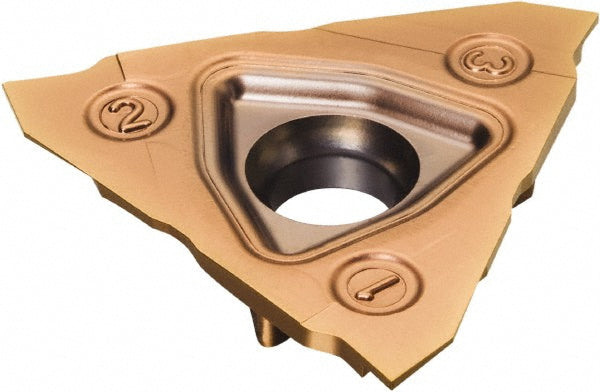

N123T3-0200-0000-GS 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5737091
MFR# 5737091ISO/ANSI# N123T3-0200-0000-GS 1125Cat# N123T3-0200-0000-GS 1125Series CoroCut 3
$60.45List $77.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5737091 is a N123T3-0200-0000-GS 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Cutting height0.1470
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeT
Insert sizeT
Insert styleN123
Insert thickness0.1469
Iso codeN123T3-0200-0000-GS 1125
Manufacturers catalog numberN123T3-0200-0000-GS 1125
Manufacturer grade1125
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.4094
Overall width0.0787
RakeNeutral
Rake angle7.00
