Sandvik Coromant

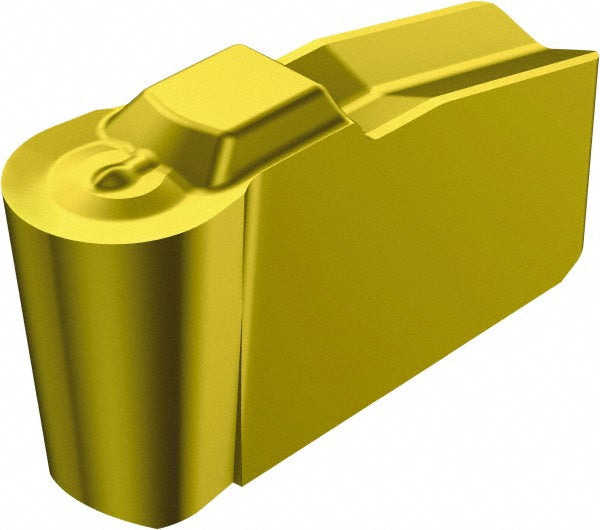

N151.2-A281-60-4P 235 Solid Carbide Insert, TiCN/TiN - Sandvik Coromant 5737102
MFR# 5737102ISO/ANSI# N151.2-A281-60-4P 235Cat# N151.2-A281-60-4P 235Series T-Max Q-Cut
$28.10List $36.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5737102 is a N151.2-A281-60-4P 235 solid carbide indexable insert, TiCN/TiN coated.
Specifications
Chip breaker4P
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.1405
Cutting height0.4062
Cutting width0.2810
Insert handNeutral
Insert materialSolid Carbide
Insert seat size60
Insert size60
Insert styleN151.2-A..
Insert thickness0.4062
Iso codeN151.2-A281-60-4P 235
Manufacturers catalog numberN151.2-A281-60-4P 235
Maximum depth of cut in1/8
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.1405
Multi use toolYes
Overall width0.2810
RakePositive
