Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5737170
MFR# 5737170Cat# N151.2-200-5E 1125Series T-Max Q-Cut
$19.40List $24.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

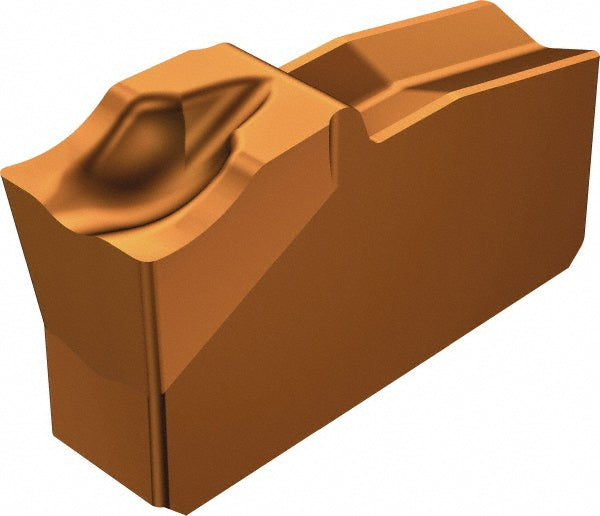

The Sandvik Coromant 5737170 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chipbreaker5E
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size20
Insert size code20
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-200-5E 1125
Manufacturer grade1125
Overall width0.0787
Relief angle7.00
