Sandvik Coromant

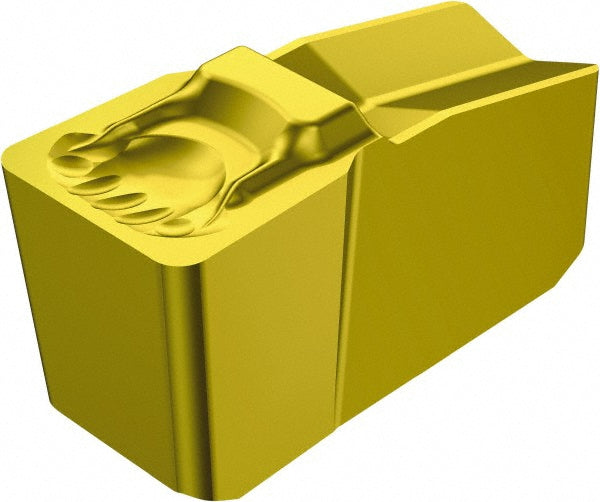

N151.2-A375-80-6G 235 Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5737290
MFR# 5737290ISO/ANSI# N151.2-A375-80-6G 235Cat# N151.2-A375-80-6G 235Series T-Max Q-Cut
$36.72List $47.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5737290 is a N151.2-A375-80-6G 235 solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chip breaker6G
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0310
Cutting height0.4062
Cutting width in3/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat size80
Insert size80
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-A375-80-6G 235
Manufacturers catalog numberN151.2-A375-80-6G 235
Manufacturer grade235
Maximum corner radius0.0330
Minimum corner radius0.0290
Multi use toolYes
Overall length0.4622
Overall width in3/8
RakeNeutral
Rake angle7.00
