Sandvik Coromant

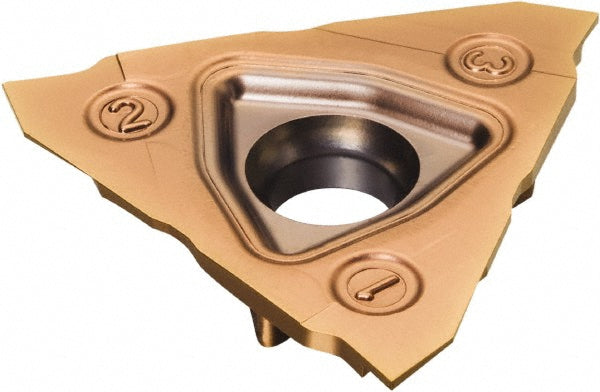

N123U301400000GS1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5737316
MFR# 5737316ISO/ANSI# N123U301400000GS1125Series CoroCut 3
$54.74List $70.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5737316 is a N123U301400000GS1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Cutting width0.0551
Insert handNeutral
Insert materialCarbide
Insert size301400
Insert styleN123
Insert thickness0.2220
Iso codeN123U301400000GS1125
Lead angle0
Manufacturers catalog number5737316
Manufacturer grade1125
Maximum depth of cut0.1063
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Rake angle0
