Sandvik Coromant

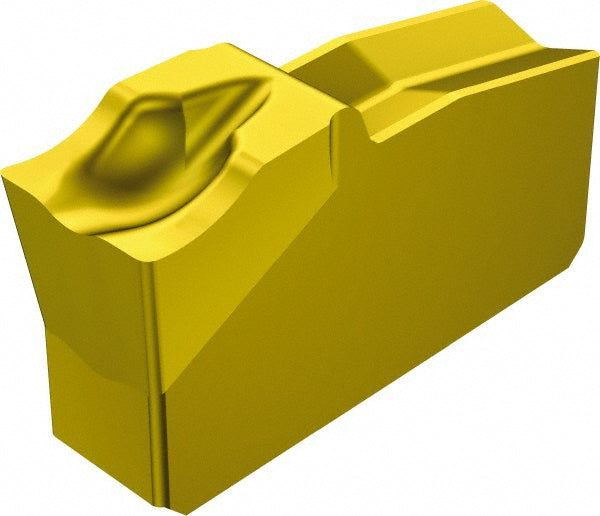

Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5737556
MFR# 5737556Series T-Max Q-Cut
$23.66List $30.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737556 is a carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5E
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.2362
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size60
Insert size code60
Insert styleN151.2
Lead angle0
Manufacturers catalog number5737556
Manufacturer grade2135
Relief angle7.00
