Sandvik Coromant
N151.2-A250-50-4P 235 Solid Carbide Insert, TiCN/TiN - Sandvik Coromant 5737621
MFR# 5737621ISO/ANSI# N151.2-A250-50-4P 235Cat# N151.2-A250-50-4P 235Series T-Max Q-Cut
$26.48List $33.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/TiN
Description

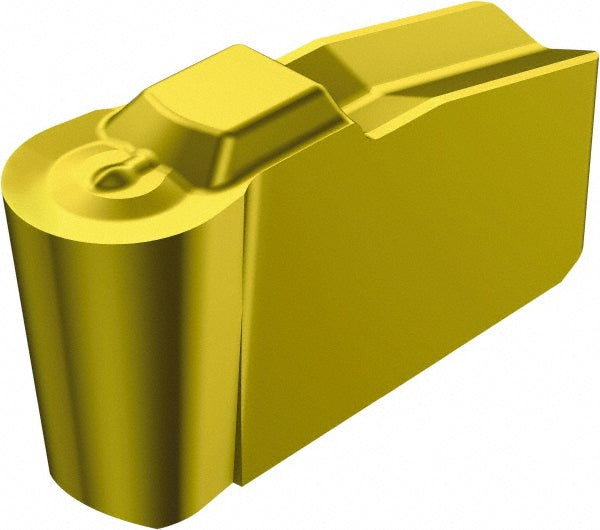

The Sandvik Coromant 5737621 is a N151.2-A250-50-4P 235 solid carbide indexable insert, TiCN/TiN coated.
Specifications
Chip breaker4P
Coating finishTiCN/TiN
Coating processCVD
Corner radius in1/8
Cutting height0.3191
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat size50
Insert size50
Insert styleN151.2-A..
Insert thickness0.3191
Iso codeN151.2-A250-50-4P 235
Manufacturers catalog numberN151.2-A250-50-4P 235
Maximum depth of cut0.0950
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.1250
Multi use toolYes
Overall width0.2500
RakePositive
