Sandvik Coromant

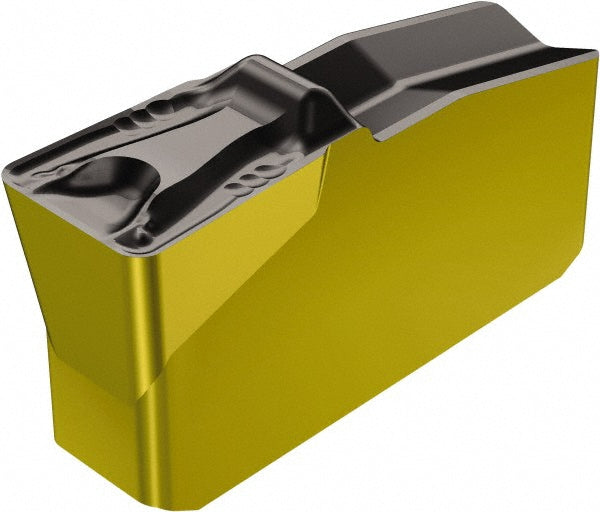

N151.2-5004-50-5T 4225 Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5737662
MFR# 5737662ISO/ANSI# N151.2-5004-50-5T 4225Cat# N151.2-5004-50-5T 4225Series T-Max Q-Cut
$25.11List $32.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737662 is a N151.2-5004-50-5T 4225 solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker5T
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0157
Cutting height0.3191
Cutting width0.1969
Insert handNeutral
Insert materialSolid Carbide
Insert seat size50
Insert size50
Insert styleN151.2
Insert thickness0.3191
Iso codeN151.2-5004-50-5T 4225
Manufacturers catalog numberN151.2-5004-50-5T 4225
Manufacturer grade4225
Maximum corner radius0.0197
Minimum corner radius0.0118
Multi use toolYes
Overall width0.1969
RakeNeutral
Rake angle7.00
