Sandvik Coromant

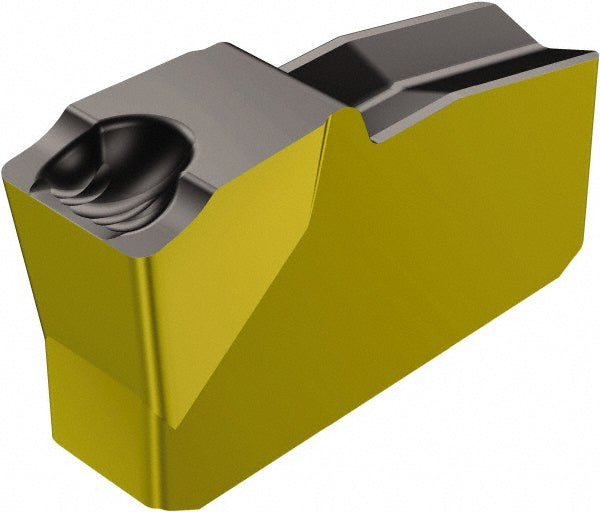

N151.2-A250-60-5G 4225 Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5737664
MFR# 5737664ISO/ANSI# N151.2-A250-60-5G 4225Cat# N151.2-A250-60-5G 4225Series T-Max Q-Cut
$29.14List $37.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737664 is a N151.2-A250-60-5G 4225 solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker5G
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0100
Cutting height0.4062
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat size60
Insert size60
Insert styleN151.2
Insert thickness0.4062
Iso codeN151.2-A250-60-5G 4225
Manufacturers catalog numberN151.2-A250-60-5G 4225
Manufacturer grade4225
Maximum corner radius0.0140
Minimum corner radius0.0060
Multi use toolYes
Overall length0.3295
Overall width in1/4
RakeNeutral
Rake angle7.00
