Sandvik Coromant

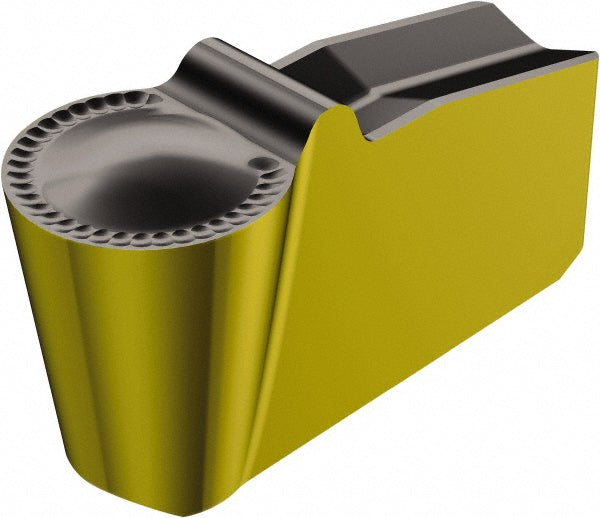

N151.2-A250-50-5P 4225 Solid Carbide Insert, TiCN/Al2O3/TiN - Sandvik Coromant 5737674
MFR# 5737674ISO/ANSI# N151.2-A250-50-5P 4225Cat# N151.2-A250-50-5P 4225Series T-Max Q-Cut
$25.38List $32.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737674 is a N151.2-A250-50-5P 4225 solid carbide indexable insert, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker5P
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius in1/8
Cutting height0.3191
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat size50
Insert size50
Insert styleN151.2-A..
Insert thickness0.3191
Iso codeN151.2-A250-50-5P 4225
Manufacturers catalog numberN151.2-A250-50-5P 4225
Maximum depth of cut0.1142
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.1250
Multi use toolYes
Overall width0.2500
RakePositive
