Sandvik Coromant

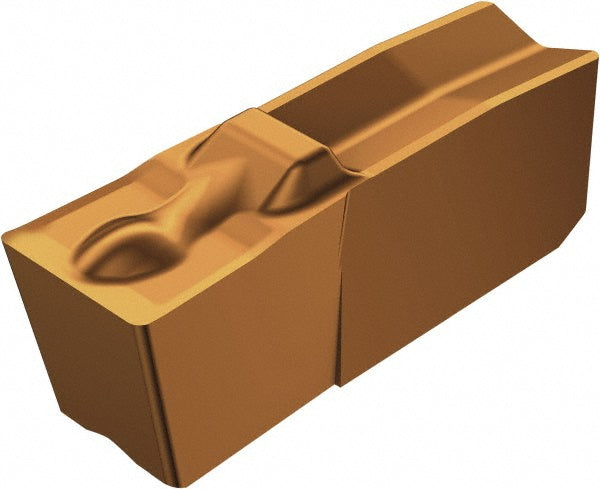

N151.3-A094-25-4G 1145 Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5737991
MFR# 5737991ISO/ANSI# N151.3-A094-25-4G 1145Cat# N151.3-A094-25-4G 1145Series T-Max Q-Cut
$24.41List $31.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5737991 is a N151.3-A094-25-4G 1145 solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
Chip breaker4G
Coating finishTiAlN
Coating processPVD
Corner radius0.0070
Cutting height0.2081
Cutting width in3/32
Insert handNeutral
Insert materialSolid Carbide
Insert seat size25
Insert size25
Insert styleN151.3
Insert thickness0.2082
Iso codeN151.3-A094-25-4G 1145
Manufacturers catalog numberN151.3-A094-25-4G 1145
Manufacturer grade1145
Maximum corner radius0.0090
Minimum corner radius0.0050
Multi use toolYes
Overall length0.2118
Overall width0.0940
RakeNeutral
Rake angle11.00
