Sandvik Coromant

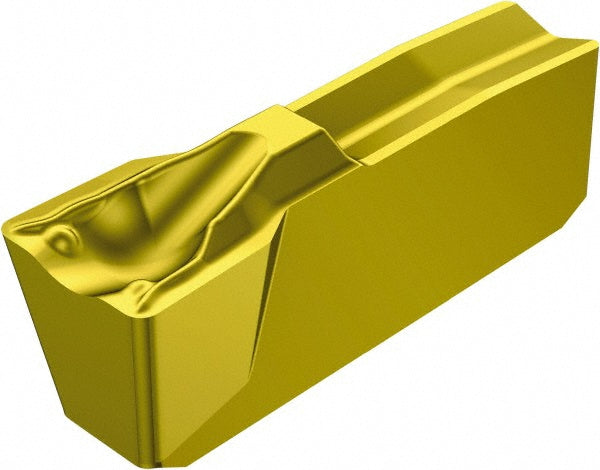

N151.3-300-25-7G 2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5737998
MFR# 5737998ISO/ANSI# N151.3-300-25-7G 2135Cat# N151.3-300-25-7G 2135Series T-Max Q-Cut
$19.06List $24.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737998 is a N151.3-300-25-7G 2135 solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker7G
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0118
Cutting height0.2081
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat size25
Insert size25
Insert styleN151.3
Insert thickness0.2082
Iso codeN151.3-300-25-7G 2135
Manufacturers catalog numberN151.3-300-25-7G 2135
Manufacturer grade2135
Maximum corner radius0.0157
Minimum corner radius0.0079
Multi use toolYes
Overall length0.2118
Overall width0.1181
RakeNeutral
Rake angle11.00
