Sandvik Coromant

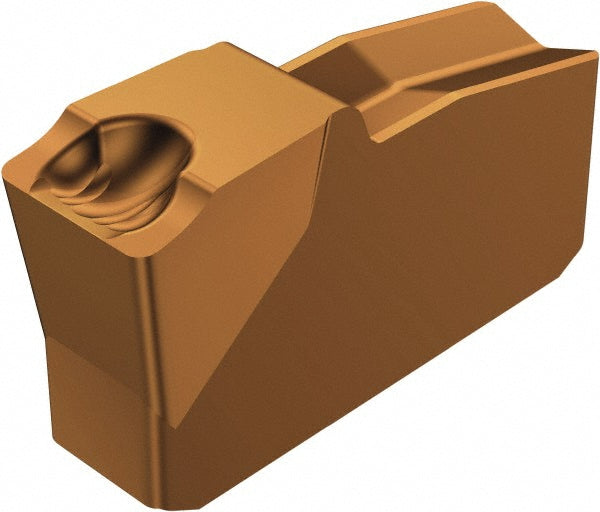

N151.2-400-40-5G 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5738068
MFR# 5738068ISO/ANSI# N151.2-400-40-5G 1125Cat# N151.2-400-40-5G 1125Series T-Max Q-Cut
$23.79List $30.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5738068 is a N151.2-400-40-5G 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker5G
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting height0.3191
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert seat size40
Insert size40
Insert styleN151.2
Insert thickness0.3191
Iso codeN151.2-400-40-5G 1125
Manufacturers catalog numberN151.2-400-40-5G 1125
Manufacturer grade1125
Maximum corner radius0.0157
Minimum corner radius0.0079
Multi use toolYes
Overall length0.2677
Overall width0.1575
RakeNeutral
Rake angle7.00
