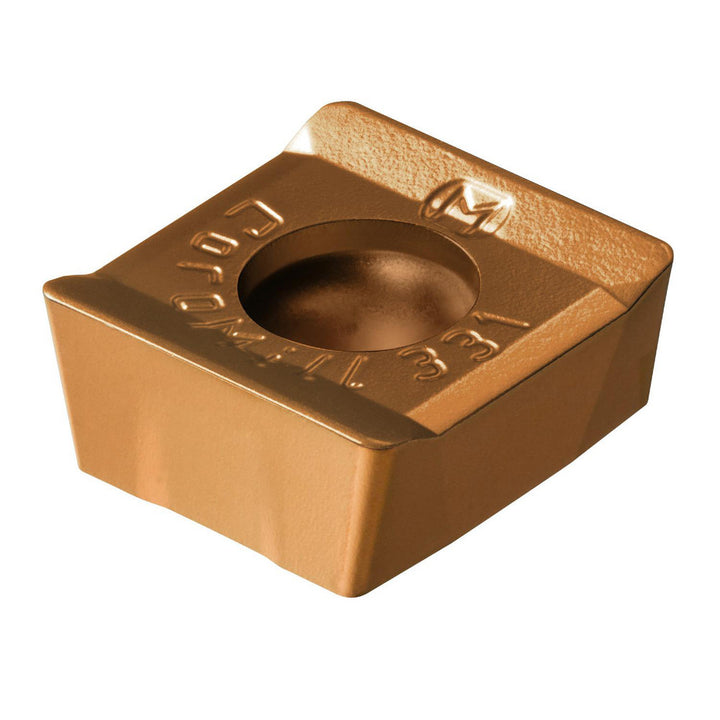

N331.1A-08 45 08M-KM1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5738190

Sandvik Coromant

N331.1A-08 45 08M-KM1020 Solid Carbide Insert, Grade 1020, TiAlN - Sandvik Coromant 5738190

MFR# 5738190ISO/ANSI# N331.1A-08 45 08M-KM1020Cat# N331.1A-08 45 08M-KM1020Series N331.1A

$17.39List $22.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1020
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5738190 is a N331.1A-08 45 08M-KM1020 solid carbide indexable insert, grade 1020, TiAlN coated. Suited for cast iron.

Specifications

Ansi codeN331.1A-08 45 08M-KM1020
Chip breakerKM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityL331.52C
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3350
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084508
Insert styleN331.1A
Iso codeN331.1A-08 45 08M-KM1020
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-08 45 08M-KM1020
Manufacturer grade1020
Material applicationCast Iron
Material gradeK05
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
