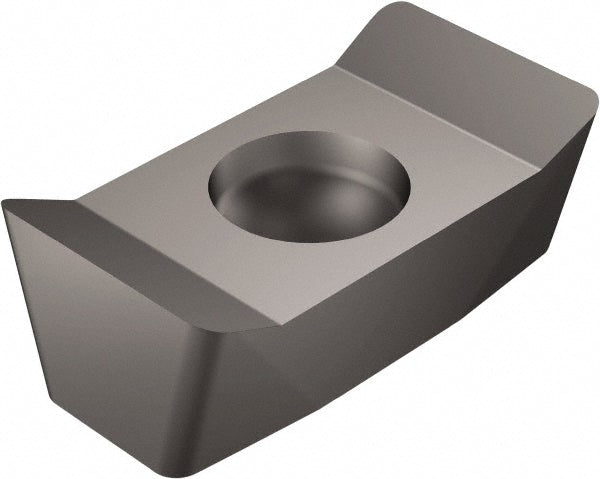

N331.1A-08 45 08H-NLH10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5738191

Sandvik Coromant

N331.1A-08 45 08H-NLH10 Solid Carbide Insert, Grade H10 - Sandvik Coromant 5738191

MFR# 5738191ISO/ANSI# N331.1A-08 45 08H-NLH10Cat# N331.1A-08 45 08H-NLH10Series N331.1A

$17.98List $23.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeH10
MaterialSolid Carbide

Description

The Sandvik Coromant 5738191 is a N331.1A-08 45 08H-NLH10 solid carbide indexable insert, grade H10. Suited for cast iron, non-ferrous metal.

Specifications

Ansi codeN331.1A-08 45 08H-NLH10
Chip breakerNL
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityL331.52C
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3350
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084508
Insert styleN331.1A
Iso codeN331.1A-08 45 08H-NLH10
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-08 45 08H-NLH10
Manufacturer gradeH10
Material applicationCast Iron; Non-Ferrous Metal
Material gradeN10
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
