Sandvik Coromant

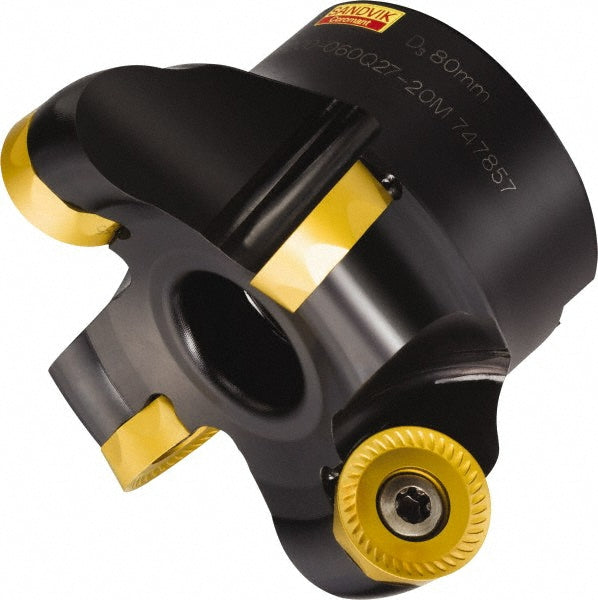

Indexable Milling Cutters - Sandvik Coromant 5739043
MFR# 5739043Series CoroMill 200
$1,086.25List $1,154.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Sandvik Coromant 5739043 indexable milling cutters. Series CoroMill 200.
Specifications
Arbor hole diameter in1
Compatible insert size codeRCKT 13 04 00
Complete insert compatibilityRCKT 13 04 00
Coolant throughNo
Cutter styleRA200
Cutting directionRight Hand
Cutting edge length in1/4
Hub diameter in1
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle0
Maximum body diameter2.5000
Maximum cutting diameter in2-1/2
Maximum depth of cut0.2500
Number of cutter inserts5
Number of flutes5
Overall height1.9685
Pitch typeClose
RakeNegative
Toolholder materialSteel
