Sandvik Coromant
Indexable Grooving - Sandvik Coromant 5739169
MFR# 5739169Cat# QS-SMALR 083XSeries CoroCut XS
$190.10List $201.96
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

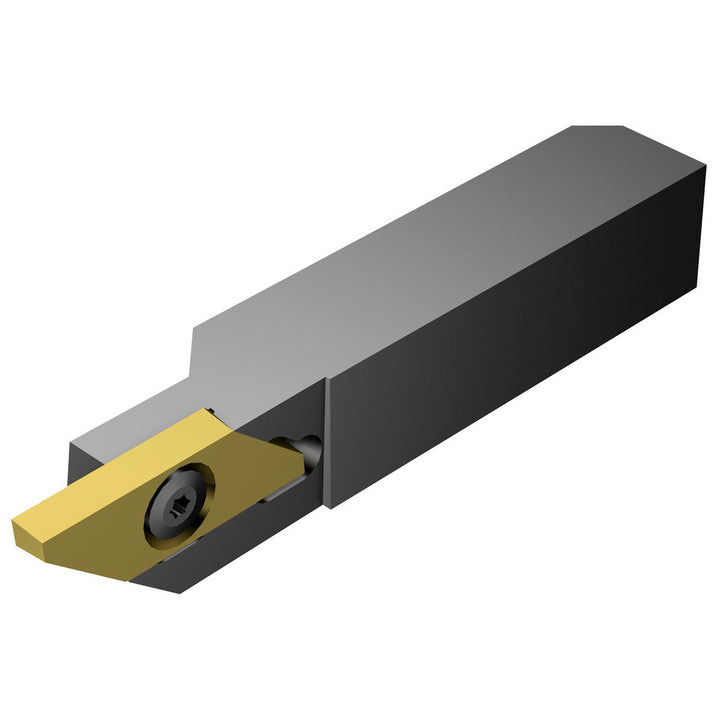

The Sandvik Coromant 5739169 indexable grooving. Series CoroCut XS.
Specifications
Back of bar to cutting edge2.7559
Compatible insert size codeMACR 3 200
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height0.5000
Head length0.5000
Insert compatibilityMAxR 3..
Insert holding methodClamp
Insert seat size3.0
Internal or externalExternal
Manufacturers catalog numberQS-SMALR 083X
Maximum depth of cut0.3346
Maximum overhang in1.0629
Overall length2.7559
Shank height in1/2
Shank length1.6929
Shank width diameter in1/2
Toolholder styleQS-SMALR/L..X
