Sandvik Coromant

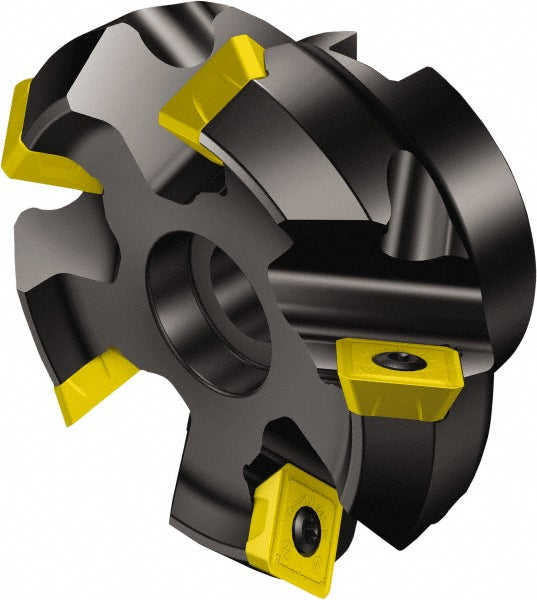

Indexable Milling Cutters - Sandvik Coromant 5739734
MFR# 5739734Series CoroMill 245
$840.57List $893.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Sandvik Coromant 5739734 indexable milling cutters. Series CoroMill 245.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR245-12T3..
Complete insert compatibilityR245-12T3..
Coolant throughNo
Cutter styleRA245
Cutting directionRight Hand
Cutting edge length0.2400
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle45
Maximum body diameter2.5000
Maximum cutting diameter in2-1/2
Maximum depth of cut0.2400
Number of cutter inserts5
Number of flutes5
Overall height1.5748
Pitch typeClose
RakePositive
Toolholder materialSteel
