Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 5739888
MFR# 5739888Series CoroMill 210
$1,284.87List $1,365.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description

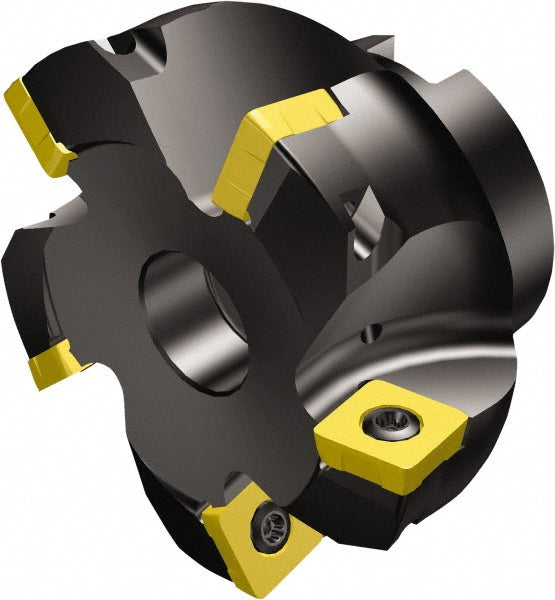

The Sandvik Coromant 5739888 indexable milling cutters. Series CoroMill 210.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeR210-140512M
Complete insert compatibilityR210-140512M-
Coolant throughYes
Cutter styleRA210
Cutting directionRight Hand
Cutting edge length0.0787
Hub diameter in1-1/2
Insert holding methodClamp; Screw
Keyway width0.6331
Lead angle10
Maximum body diameter3.0551
Maximum cutting diameter3.0551
Maximum depth of cut0.0787
Number of cutter inserts6
Number of flutes6
Overall height2.3620
Pitch typeClose
RakePositive
Toolholder materialSteel
