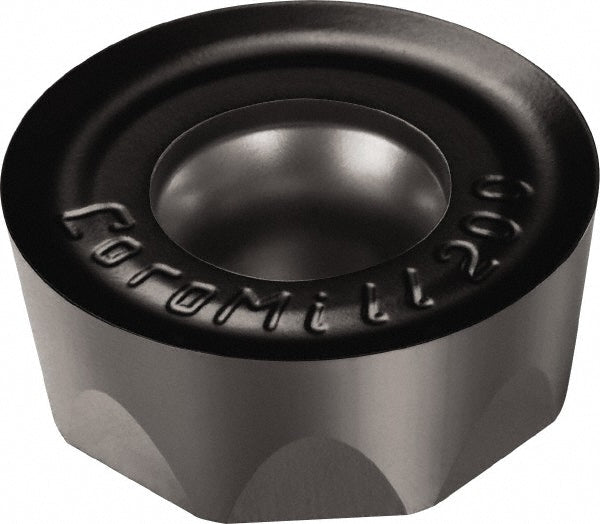

RCHT 13 04 00-PL 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5740009

Sandvik Coromant

RCHT 13 04 00-PL 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5740009

MFR# 5740009ISO/ANSI# RCHT 13 04 00-PL 1010Cat# RCHT 13 04 00-PL 1010Series RCHT

$20.81List $26.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5740009 is a RCHT 13 04 00-PL 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeRCHT 13 04 00-PL 1010
Chip breakerPL
Coating finishTiAlN
Coating processPVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCHT
Iso codeRCHT 13 04 00-PL 1010
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCHT 13 04 00-PL 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
