Sandvik Coromant

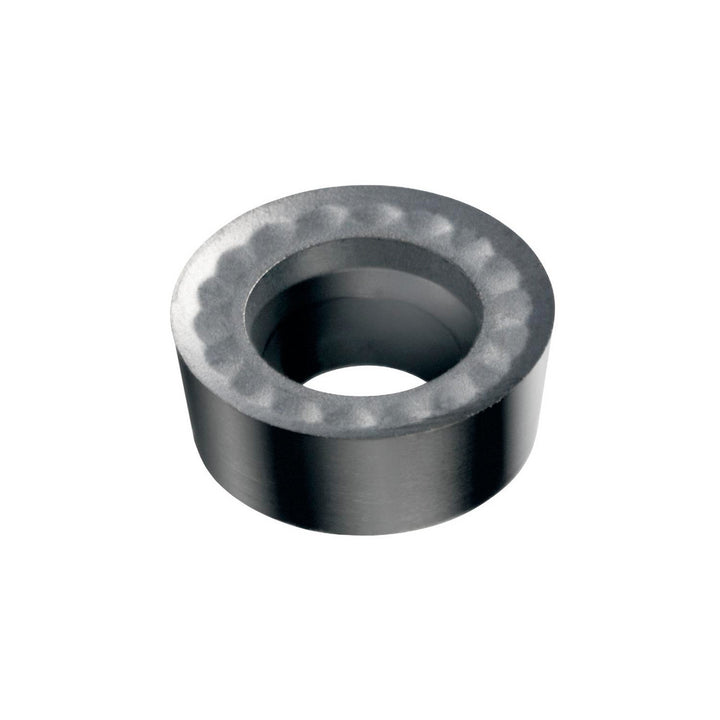

RCGX1204M0ALH10 Carbide Insert, Grade H10 - Sandvik Coromant 5740069
MFR# 5740069ISO/ANSI# RCGX1204M0Series CoroTurn 107
$15.40List $19.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5740069 is a RCGX1204M0ALH10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Ansi insert codeRCGX1204M0
Ansi size code1204M0
Chip breakerAL
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeR - Round
Insert size code1204
Insert styleRCGX
Insert thickness in3/16
Iso codeRCGX1204M0ALH10
Iso insert codeRCGX1204M0
Iso size code1204M0
Manufacturers catalog number5740069
Manufacturer gradeH10
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeG
Wiper edgeNo
