Sandvik Coromant

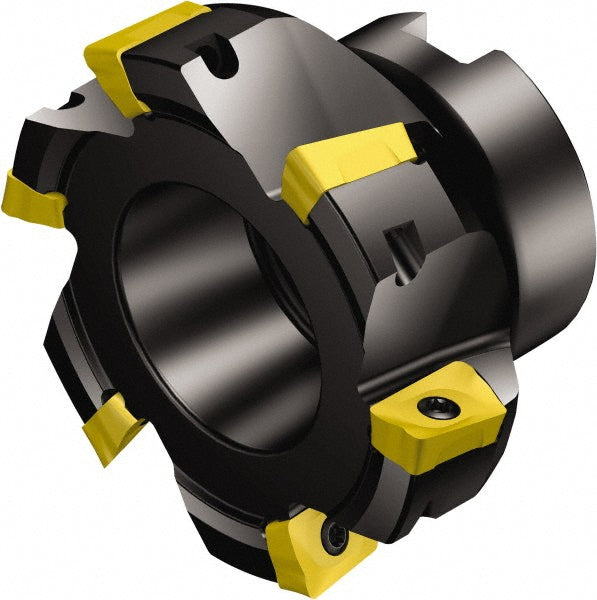

Indexable Milling Cutters - Sandvik Coromant 5740105
MFR# 5740105Series CoroMill 390
$642.90List $683.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Sandvik Coromant 5740105 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR390-11..
Complete insert compatibilityR390-11..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.3937
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle90
Maximum body diameter1.4370
Maximum cutting diameter in1-1/2
Maximum depth of cut0.3937
Number of cutter inserts6
Number of flutes6
Overall height1.5750
Pitch typeCoarse
RakePositive
Toolholder materialSteel
