Sandvik Coromant

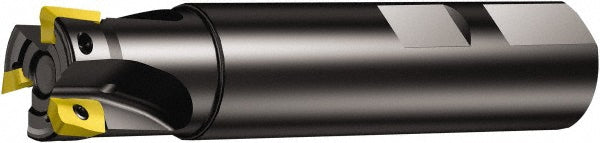

Indexable End Mills - Sandvik Coromant 5740171
MFR# 5740171Series CoroMill 390
$593.01List $630.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Sandvik Coromant 5740171 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter1-1/2
End mill typeRamping
Insert compatibilityR390-11..
Insert holding methodScrew
Iso numberRA390-038M32-11M
Lead angle90
Maximum depth of cut0.3940
Maximum rpm27800
Number of cutter inserts4
Number of flutes4
Overall length in4
Shank diameter in1-1/4
Shank typeWeldon Flat
Tool materialSteel
