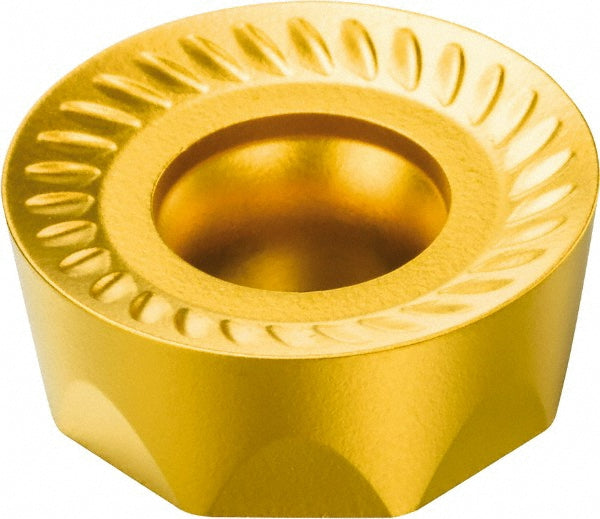

RCKT 13 04 00-WM 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740408

Sandvik Coromant

RCKT 13 04 00-WM 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740408

MFR# 5740408ISO/ANSI# RCKT 13 04 00-WM 235Cat# RCKT 13 04 00-WM 235Series RCKT

$16.72List $21.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5740408 is a RCKT 13 04 00-WM 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeRCKT 13 04 00-WM 235
Chip breakerWM
Coating finishTiCN
Coating processCVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCKT
Iso codeRCKT 13 04 00-WM 235
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCKT 13 04 00-WM 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
