Sandvik Coromant

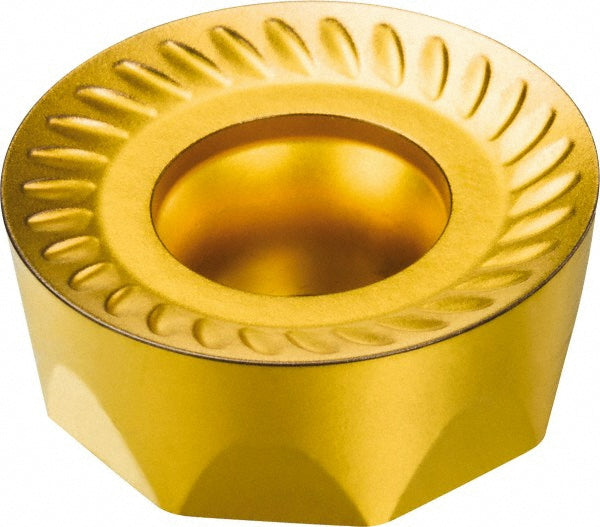

RCKT 12 04 M0-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5740461
MFR# 5740461ISO/ANSI# RCKT 12 04 M0-MM 2040Cat# RCKT 12 04 M0-MM 2040Series RCKT
$19.09List $24.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5740461 is a RCKT 12 04 M0-MM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRCKT 12 04 M0-MM 2040
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Convex radius0.2362
Corner radius0.2362
Cutter series compatibilitySRSC; SRDC
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204M0
Insert styleRCKT
Iso codeRCKT 12 04 M0-MM 2040
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRCKT 12 04 M0-MM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.0693
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4724
