Sandvik Coromant

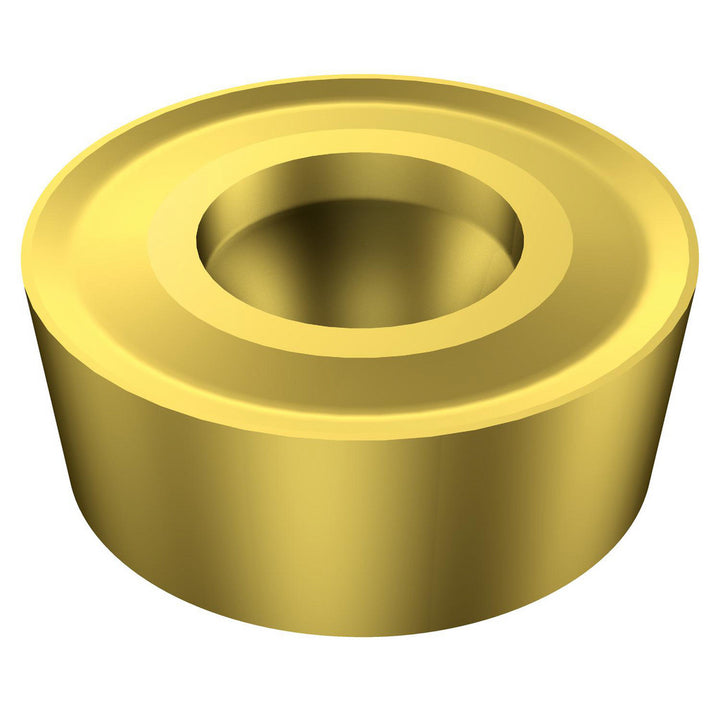

RCMT 12 04 00 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740569
MFR# 5740569ISO/ANSI# RCMT 12 04 00 235Series CoroTurn 107
$15.59List $20.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740569 is a RCMT 12 04 00 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breaker00
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1732
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 00 235
Length range0.0000 - 0.3000
Manufacturer grade235
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
