Sandvik Coromant
RCMT 12 04 00-SM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740614
MFR# 5740614ISO/ANSI# RCMT 12 04 00-SM H13ASeries CoroTurn 107
$13.59List $17.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeH13A
MaterialCarbide
Description

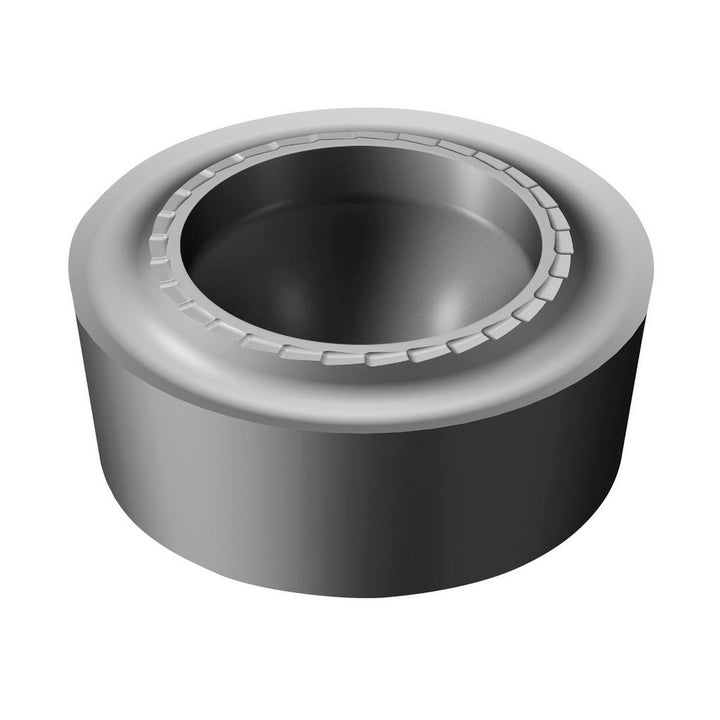

The Sandvik Coromant 5740614 is a RCMT 12 04 00-SM H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Hole diameter0.1732
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 00-SM H13A
Length range0.0000 - 0.3000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
