Sandvik Coromant
RCMT 12 04 M0-SM 1115 Carbide Insert, Grade 1115, TiCN - Sandvik Coromant 5740618
MFR# 5740618ISO/ANSI# RCMT 12 04 M0-SM 1115Cat# RCMT 12 04 M0-SM 1115Series CoroTurn 107
$18.52List $23.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade1115
MaterialCarbide
CoatingTiCN
Description

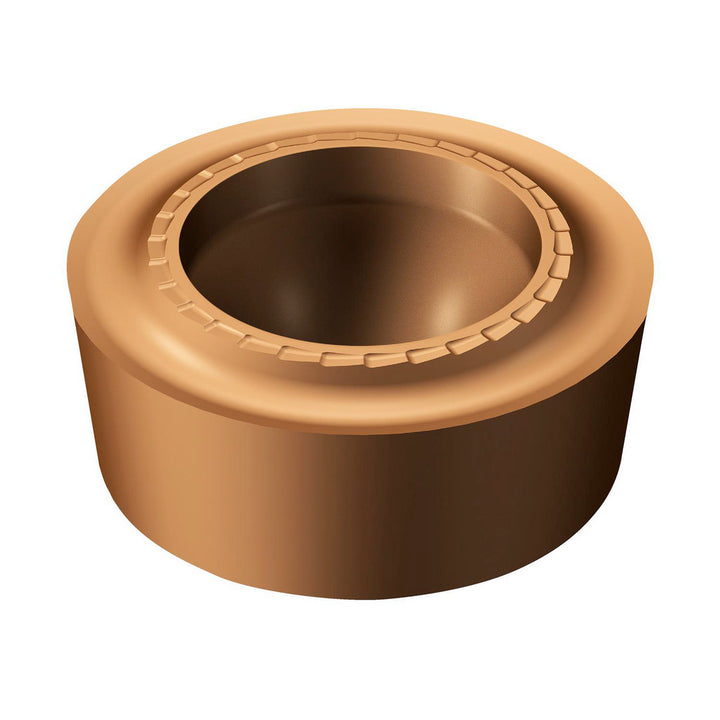

The Sandvik Coromant 5740618 is a RCMT 12 04 M0-SM 1115 carbide indexable insert, grade 1115, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processPVD
Full radiusYes
Hole diameter0.1875
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code1204
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 M0-SM 1115
Manufacturers catalog numberRCMT 12 04 M0-SM 1115
Manufacturer grade1115
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
