Sandvik Coromant

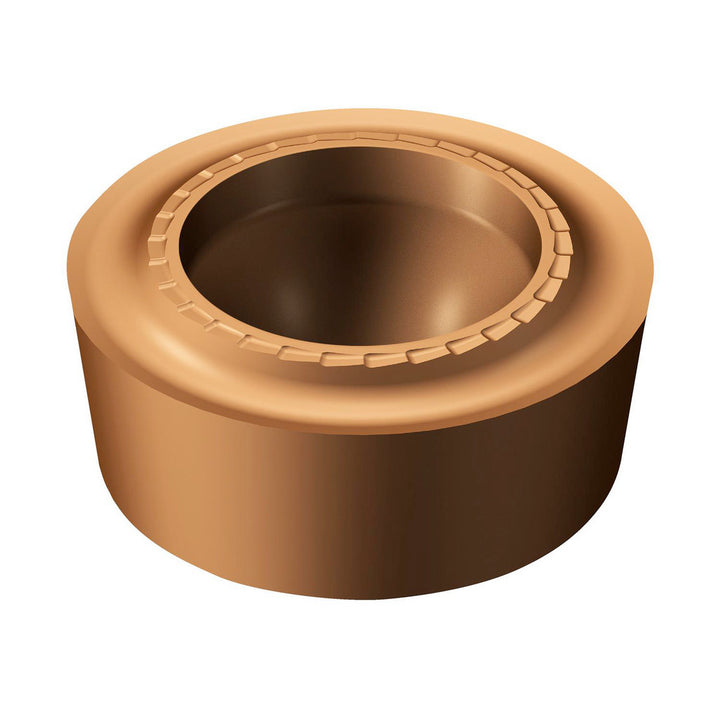

RCMT 12 04 M0-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5740623
MFR# 5740623ISO/ANSI# RCMT 12 04 M0-SM 1125Series CoroTurn 107
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5740623 is a RCMT 12 04 M0-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Hole diameter0.1732
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code1204
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 M0-SM 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
