Sandvik Coromant

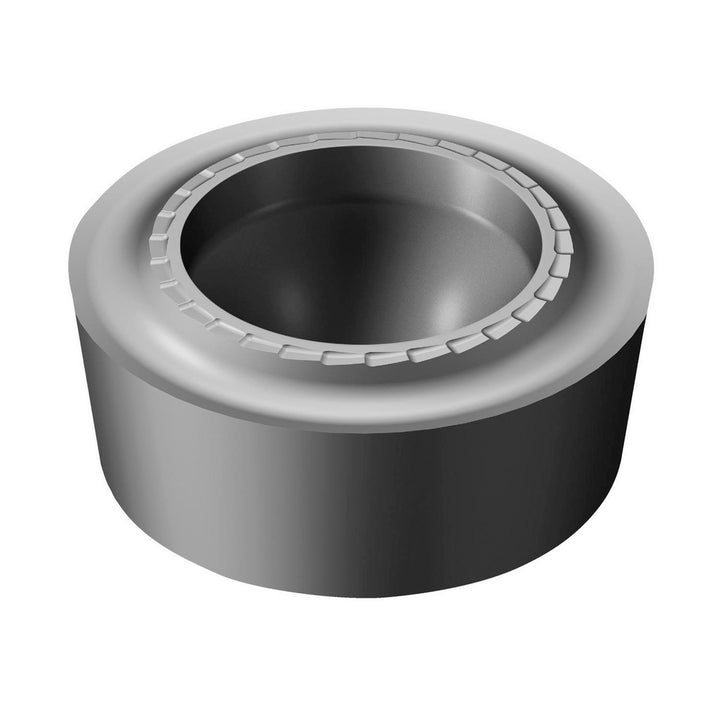

RCMT 10 T3 M0-SM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740677
MFR# 5740677ISO/ANSI# RCMT 10 T3 M0-SM H13ACat# RCMT 10 T3 M0-SM H13ASeries CoroTurn 107
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5740677 is a RCMT 10 T3 M0-SM H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating processUncoated
Full radiusYes
Hole diameter0.1563
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert length in5/32
Insert materialCarbide
Insert shapeRound
Insert size code10T3
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT 10 T3 M0-SM H13A
Manufacturers catalog numberRCMT 10 T3 M0-SM H13A
Manufacturer gradeH13A
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
