Sandvik Coromant

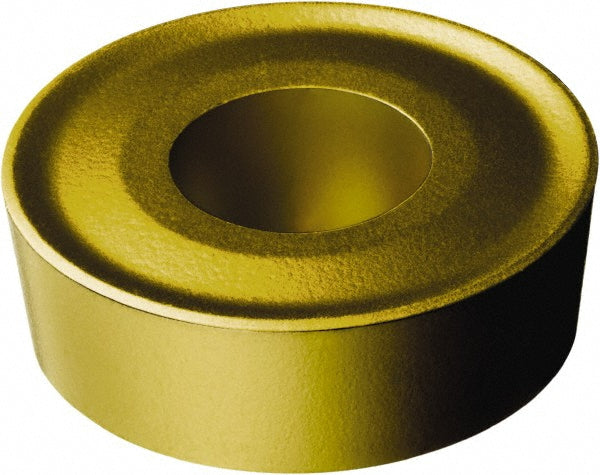

RCMX100300235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740691
MFR# 5740691ISO/ANSI# RCMX100300235Series T-Max P
$10.76List $13.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740691 is a RCMX100300235 carbide indexable insert, grade 235, TiCN coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1417
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeRound
Insert size code100300
Insert styleRCMX
Insert thickness in1/8
Iso codeRCMX100300235
Manufacturers catalog number5740691
Manufacturer grade235
Relief angle7
Tolerance codeM
