Sandvik Coromant
RCMT 10 T3 M0 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5740735
MFR# 5740735ISO/ANSI# RCMT 10 T3 M0 2025Series CoroTurn 107
$14.86List $19.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade2025
MaterialCarbide
CoatingTiCN
Description

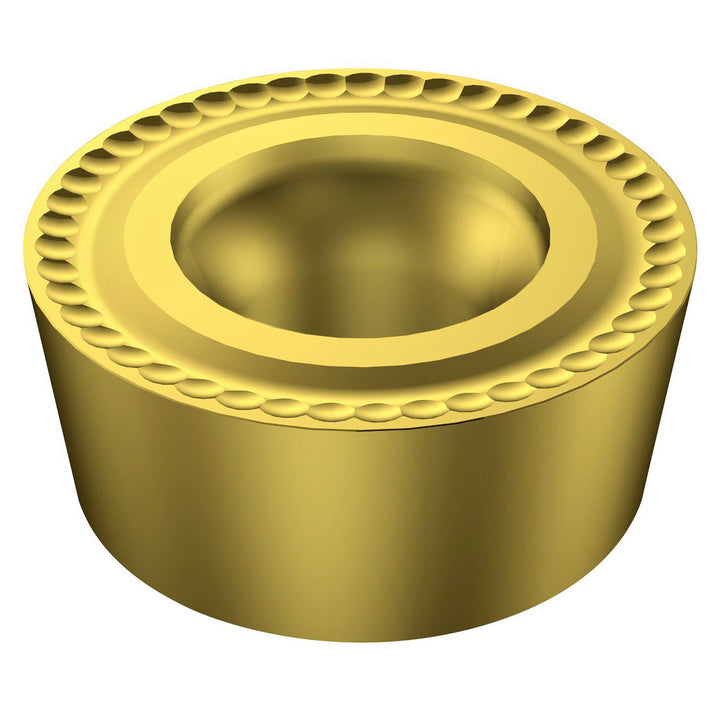

The Sandvik Coromant 5740735 is a RCMT 10 T3 M0 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1732
Inscribed circle0.3937
Insert handNeutral
Insert holding methodScrew
Insert length in5/32
Insert materialCarbide
Insert shapeRound
Insert size code10T3
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT 10 T3 M0 2025
Length range0.0000 - 0.3000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
