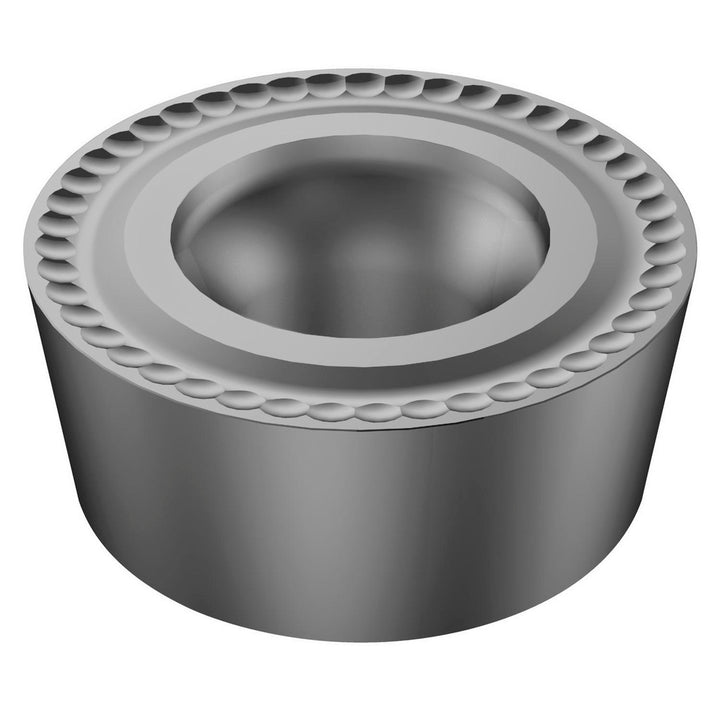

RCMT2006M0H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740745
MFR# 5740745ISO/ANSI# RCMT2006M0Series CoroTurn 107
$33.76List $43.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeR - Round
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5740745 is a RCMT2006M0H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Ansi insert codeRCMT2006M0
Ansi size code2006M0
Chip breakerM0
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.1732
Inscribed circle0.7874
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeR - Round
Insert size code2006
Insert styleRCMT
Insert thickness in1/4
Iso codeRCMT2006M0H13A
Iso insert codeRCMT2006M0
Iso size code2006M0
Manufacturers catalog number5740745
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeM
Wiper edgeNo
