Sandvik Coromant

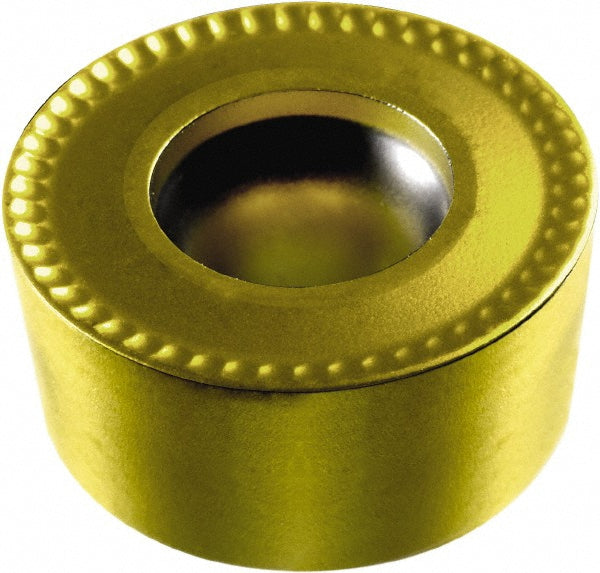

RCMT 20 06 M0 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5740746
MFR# 5740746ISO/ANSI# RCMT 20 06 M0 2025
$44.80List $57.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740746 is a RCMT 20 06 M0 2025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Hole diameter0.1732
Inscribed circle0.7874
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeRound
Insert size code2006M0
Insert styleRCMT
Insert thickness in1/4
Iso codeRCMT 20 06 M0 2025
Length range0.0000 - 0.3000
Manufacturer grade2025
Relief angle7
Tolerance codeM
