Sandvik Coromant

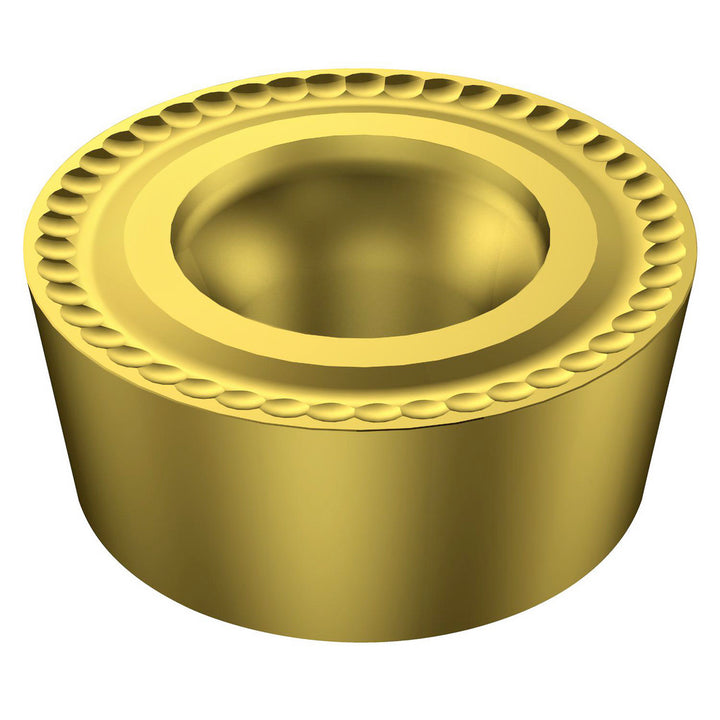

RCMT 19 06 00-M0 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740755
MFR# 5740755ISO/ANSI# RCMT 19 06 00-M0 235Series CoroTurn 107
$39.84List $51.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740755 is a RCMT 19 06 00-M0 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.2559
Inscribed circle in3/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeRound
Insert size code64
Insert styleRCMT
Insert thickness in1/4
Iso codeRCMT 19 06 00-M0 235
Length range0.0000 - 0.3000
Manufacturer grade235
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
