Sandvik Coromant

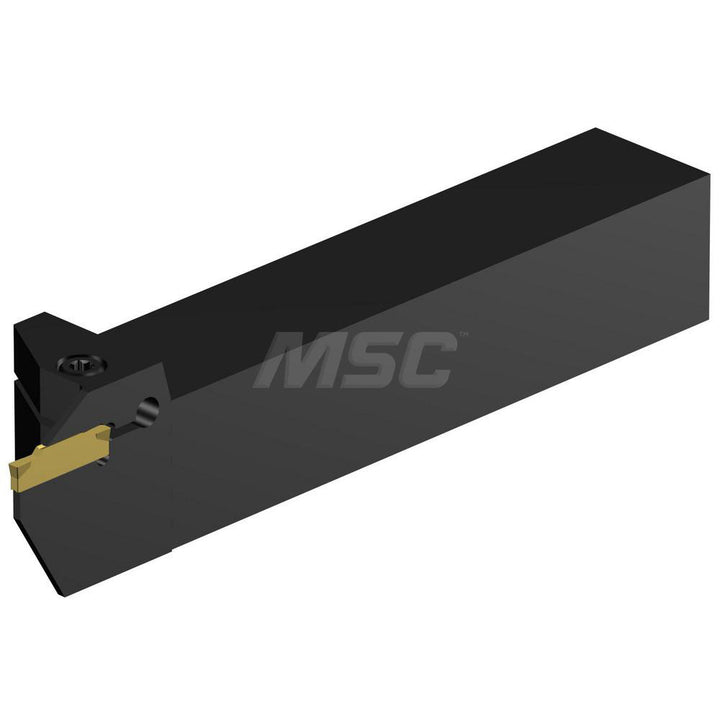

Indexable Grooving - Sandvik Coromant 5740857
MFR# 5740857Cat# RF123E059-16BSeries CoroCut 1-2
$256.59List $270.00
Save 4%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740857 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge6.0000
Compatible insert size codeN123E2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height1.0000
Head length1.0000
Insert compatibilityN123E2-0200-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123E059-16B
Maximum depth of cut0.5900
Maximum groove width (mm)2.39
Maximum overhang in1.3190
Minimum groove width0.0728
Overall length (mm)152.40
Shank height in1
Shank length4.6810
Shank width diameter in1
Toolholder styleRF123..B
