Sandvik Coromant

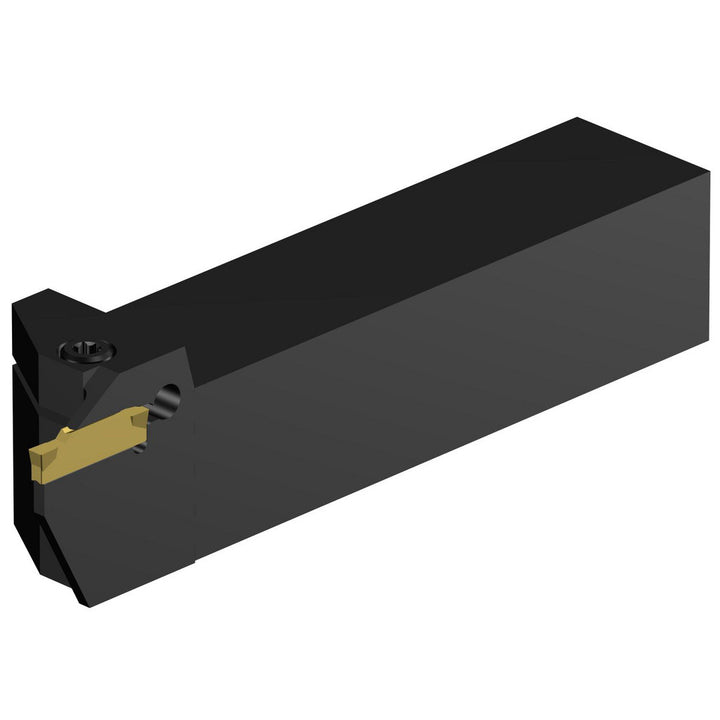

Indexable Grooving - Sandvik Coromant 5740882
MFR# 5740882Cat# RF123F040-16BSeries CoroCut 1-2
$254.15List $270.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740882 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeN123F2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height1.0000
Head length1.0000
Insert compatibilityN123F2-0250-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123F040-16B
Maximum depth of cut0.4000
Maximum groove width0.1250
Maximum overhang in1.1420
Minimum groove width0.0941
Overall length (mm)127.00
Shank height in1
Shank length3.8580
Shank width diameter in1
Toolholder styleRF123..B
