Sandvik Coromant

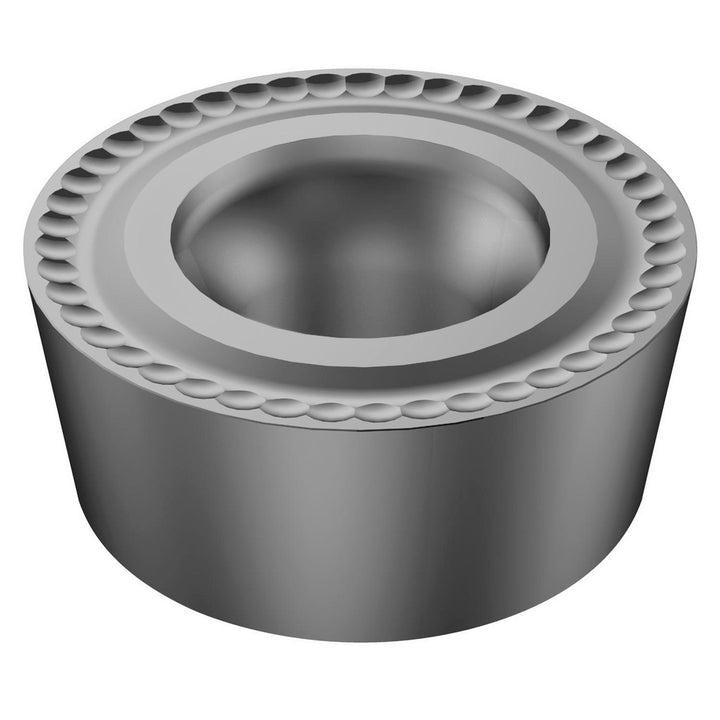

RCMT 08 03 M0 H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740892
MFR# 5740892ISO/ANSI# RCMT 08 03 M0 H13ASeries CoroTurn 107
$10.44List $13.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5740892 is a RCMT 08 03 M0 H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Hole diameter0.1339
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length in1/8
Insert materialCarbide
Insert shapeRound
Insert size code0803
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT 08 03 M0 H13A
Length range0.0000 - 0.3000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
