Sandvik Coromant

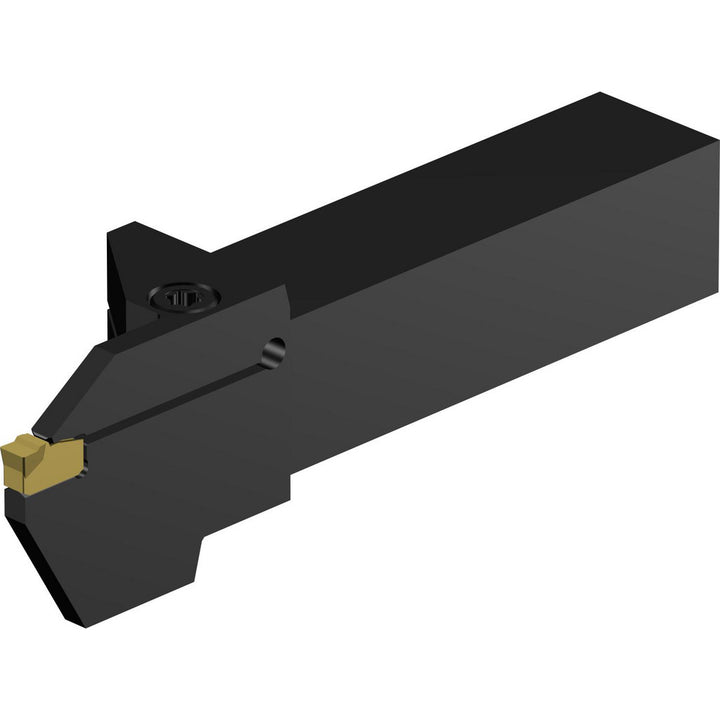

Indexable Grooving - Sandvik Coromant 5740958
MFR# 5740958Cat# RF151.23-16-50Series T-Max Q-Cut
$254.15List $270.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740958 indexable grooving. Series T-Max Q-Cut.
Specifications
Back of bar to cutting edge6.0000
Coolant throughNo
Hand of holderRight Hand
Head height1.0000
Head length1.0000
Insert compatibilityN151.2-500-5E
Insert holding methodClamp
Insert seat size50.0
Internal or externalExternal
Manufacturers catalog numberRF151.23-16-50
Maximum depth of cut1.2600
Maximum groove width0.2500
Minimum groove width0.1969
Overall length (mm)152.40
Shank height in1
Shank length3.7560
Shank width diameter in1
Toolholder styleRF151.23
